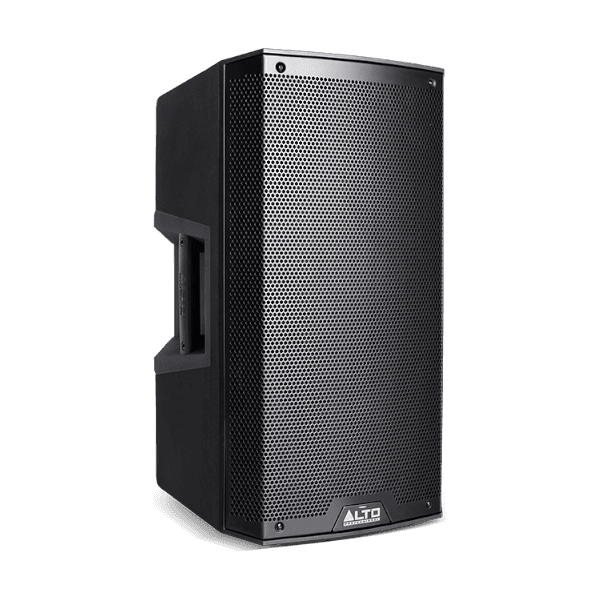

ALTO TS312

2000-WATT 12-INCH 2-WAY POWERED LOUDSPEAKER 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF) 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide High quality, lightweight, cabinet design for easy transport, set up and installation Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability Design Origin: Designed and tuned in the USA Fitur : * Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF) * LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil * HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide * Crossover: 2 kHz * Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m) * Frequency Response: 53 Hz – 20 kHz (+/- 3 dB) * Frequency Range: 46 Hz – 22 kHz (-10 dB) * Horn Coverage: 90° H x 60° V nominal * Equalization: Contour Switch Low and High Frequency +3dB Boost * Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input * Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch * Indicators: 2 x Power LED (front and rear), Clip limiter LED * Protection: Electronic clip, Thermal and transducer overdrive protection * Power Connection: IEC with Mains Fuse * AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz * Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille * Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor * Dimensions: (H x W x D): 23.8” x 13.9” x 13.8” / 605mm x 354mm x 350mm * Net Weight: 35.9 lbs. / 16.3 kg. * Design Origin: Designed and tuned in the USA * Accessories: TSB125 Bracket, TS212 Cover
